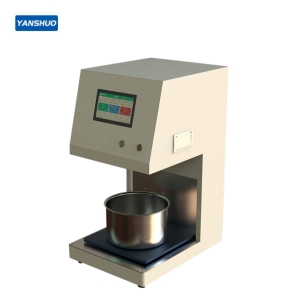

Home > Product > Non-woven Fabrics, Medical& Health Materials Testing Instruments > Non-woven Fabric TestingYS-XSL20 Water Absorption Tester
产品型号
发布时间
2026-03-18企业性质
浏览次数
相关产品
RELATED PRODUCTS详细介绍
【Scope of application】
The water absorption tester is a test instrument developed with reference to the standard "GB/T 24328.6-2020 Toilet paper and its products - Part 6: Determination of water absorption time and water absorption capacity - Basket immersion method", which is used to test the water absorption performance of various toilet paper products and fabric products. It is suitable for the determination of water absorption time and water absorption capacity of toilet paper, toilet paper base paper, and various fabric textiles, and uses the basket immersion method to absorb water. The products are widely used in toilet paper manufacturers, quality inspection systems, third-party testing institutions, colleges and universities, scientific research institutes and other units.
【Relevant Standards】
1. "GB/T 24328.6-2020 Toilet paper and its products—Part 6: Determination of water absorption time and water absorption capacity—Basket immersion method" 2. DIN EN ISO12625-8:2010 Tissue paper and tissue products Part8: Water-absorption time and water-absorption capacity, basket-immersion test method》；
【Scope of application】:
The water absorption tester is a test instrument developed with reference to the standard "GB/T 24328.6-2020 Toilet paper and its products - Part 6: Determination of water absorption time and water absorption capacity - Basket immersion method", which is used to test the water absorption performance of various toilet paper products and fabric products.
It is suitable for the determination of water absorption time and water absorption capacity of toilet paper, toilet paper base paper, and various fabric textiles, and uses the basket immersion method to absorb water. The products are widely used in toilet paper manufacturers, quality inspection systems, third-party testing institutions, colleges and universities, scientific research institutes and other units.
[Meet the standard]:
1. GB/T 24328.6-2020 Toilet paper and its products - Part 6: Determination of water absorption time and water absorption capacity - Basket immersion method
2.《DIN EN ISO12625-8:2010 Tissue Paper and tissue products Part8:Water-absorption time and water-absorption capacity,basket-immersion test method》；
[Instrument features]:
1. Intelligent embedded operating system, humanized interface design, what you see is what you get;
2.7-inch color LCD display, high-definition display effect;
3. The test stop is equipped with stainless steel metal buttons, which is more convenient, fast and durable to use;
4. High-precision stepper motor controls the lifting and lowering movement of the sink, silent operation, and smooth transmission;
5. The system is equipped with automatic positioning function, one-click operation, automatic execution;
6. Linear guide rail lifting system, smooth sliding, accurate positioning, convenient for loading specimens;
7. Standard configuration of micro printer, print experimental data at any time;
8. Standard RS232 data communication interface, convenient for data export and external connection;
9. Equipped with stainless steel sink or fully transparent acrylic sink;
【Technical Parameters】:
1. Basket quality: 3g±0.1g
2. Sink capacity: ≥3L
3. Basket specification: Φ50mm, length 80mm
4. Test time: 0-9999s
5. Timing accuracy: 0.01s
6. Overall Dimensions: 360mm(L)×480mm(D)×690mm(H)
7. Power supply: 220VAC, 50Hz
8. Net weight: 36kg
【Product Configuration】:
Standard configuration: main unit, standard basket, sink;
