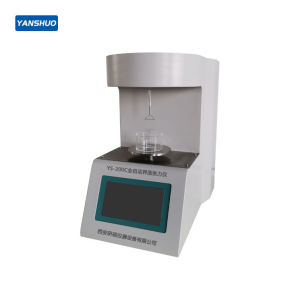

Home > Product > Non-woven Fabrics, Medical& Health Materials Testing Instruments > Non-woven Fabric TestingYS-200C automatic tensiometer
产品型号
发布时间
2026-03-18企业性质
浏览次数
相关产品
RELATED PRODUCTS详细介绍
【Scope of application】
【Relevant Standards】
GB/T6541 Determination of Interfacial Tension between Petroleum Products and Water (Circular Method)
[Meet the standard]:
GB/T6541 Determination of Interfacial Tension between Petroleum Products and Water (Circular Method)
【Instrument features:】：
1. The original high-precision sensor for fast corresponding electromagnetic force balance (patent number ZL 2019 2 1475205.X) is used to improve the measurement accuracy and linearity;
2. The instrument adopts one-point calibration, which is simple and convenient, which solves the complex procedure of the previous generation sensor that requires multi-point calibration, and eliminates the need for zeroing potentiometers and full-scale potentiometers.
3. Real-time display of equivalent tension value and current weight (can be weighed as an electronic balance);
4. Integrated temperature detection circuit, automatic temperature compensation;
5. Dynamic tension curve display;
6. Chinese and English interface function, one-click switching;
7. Clock function, power loss storage function;
8. High-definition color touch screen, more convenient to operate;
【Technical parameters】：
1. Measurement range: 5-200mN/m
2. Accuracy: 0.2% reading ± 0.2 mN/m
3. Resolution: 0.1mN/m
4. Sensitivity: 0.1mN/m
5. Power supply voltage: AC220V±20% 50HZ±10%
6. Maximum power consumption: 20W
7. Applicable ambient temperature: 10~30°C (typical value 25°C)
8. Applicable ambient humidity: ≤85% RH
