Rotary Friction Static Tester_Yanshuo Instrument and Equipment Co.

Rotary Friction Static Tester

发布时间：2026-03-16
点击次数：

Rotary Friction Static Tester

Model: YG402
Origin: Chinese manufacturer
Minimum Order Quantity: 1 unit
Payment Terms: T/T, L/C
Delivery time: 20 working days
Delivery: Delivered directly to your door

What is a rotational friction static tester?

Rotary fribostatic testers are used to evaluate the electrostatic properties of fabrics, yarns, leather, and other sheets after they gain an electric charge through friction.

Rotary friction static tester featured products

Yanshuo has developed several models of rotary friction static testers, each with its own specific functions. You can always find the right product for your laboratory to test the electrostatic properties of a wide range of sheets.

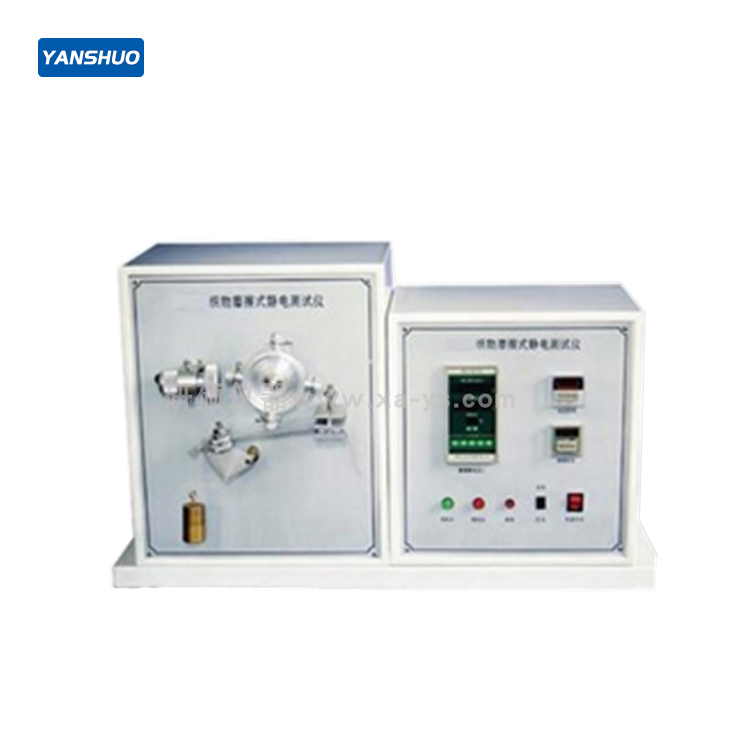

YG402 Frictional Fabric Static Tester

【Technical Parameters】

1．Display Mode: LCD display with Chinese menu

2．Voltage Measurement Range: 0～10KV

3．Voltage Measurement Accuracy: ±1%

4．Dimensions of Metal Drum: Outer diameter 150±1mm, width 60±1mm

5．Rotation Speed of Metal Drum: 400r/min

6．Standard Cloth Clip: Width 25±1mm, distance between left and right clips 130±3mm

7．Weight of Hammer: 500g

8．Overall Dimensions: W540×D420×H480mm

9．Power Supply: AC220V±10%, 40W

Why Choose Yanshuo's Rotary Friction Static Tester?

Yanshuo has 22 years of experience in the industry, which means our customers can rely on the reliability of our products. Long-term experience has endowed us with deep knowledge, which is reflected in the innovation and quality of our products. We have built strong relationships with over 1000+ customers, making your feedback and needs an important part of our strengths. We are also very good at solving any problems you may have. These are the key reasons to choose us as a high-quality tester.
