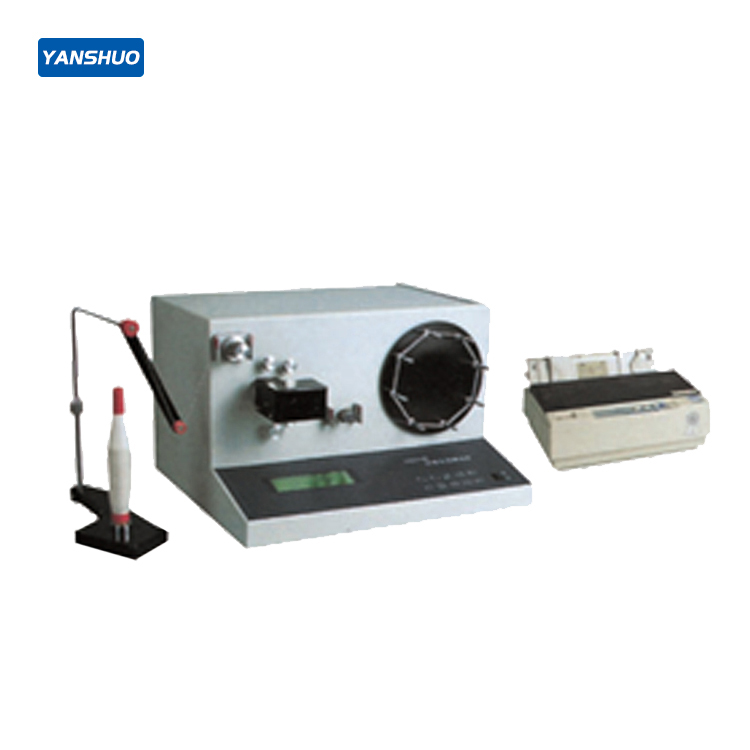

【Scope of application】:A special instrument for determining yarn hairiness. It is suitable for textile factories and scientific research, teaching, foreign trade, commodity inspection and other units to test the hairiness length, hairiness index and distribution of pure and blended yarns of various natural fibers and chemical fibers, so as to guide production, improve processes, control quality, develop products and provide identification means for foreign trade.
[Method standard]:FZ/T01086
【Technical Parameters】:
1. Detected hairy length: The hairiness index of 1, 2, 3, 4, 5, 6, 7, 8, and 9mm hairy length is measured at the same time.
2. Hairiness length setting accuracy: less than 0.1mm.
3. Hairiness resolution: less than 0.5mm.
4. Test speed: 15m/min±5%, 30m/min±5%, 60m/min±5%.
5. Yarn test clip length: 1~1000m arbitrarily set.
6. Number of continuous tests: 1~10000 times (or even more) arbitrary setting.
7. Dynamic test pre-tension range: 0~60cN adjustable and displayable.
8. Data display method: large screen LCD display and its printing record.
9. Statistical values: average hairiness, hairiness index, unevenness rate, and extreme difference.
10. Working parameter adjustment mode: automatic adjustment.
11. Power supply: AC 220V, anti-interference regulated power supply.
12. Volume: 730mm×430mm×430mm
13. Weight: 45Kg
