[Instrument Features]
1．National standard measurement range: 2~200μm; Instrument measurement range: 1~2000μm.
2．Equipped with data calibration function, full sample image archiving function, and Chinese menu.
3．Data and reports are output in EXCEL format; report format and statistical methods can be modified according to relevant standard requirements provided by users.
4．Developed personalized interface with customizable observation magnification.
5．Automatic scale calibration to minimize operational errors.
6．Dynamic measurement added for diameter tests and content tests; measurement marks of the current field of view can be retained, greatly improving measurement speed and accuracy.
7．Used for observing the cross-sectional morphology and measuring the cross-sectional area of various chemical fibers, profiled fibers, and hollow fibers.
8．Testing of profilation degree and hollow ratio of profiled fibers complies with textile industry standards.
9．Fiber content of various blended products can be obtained through cross-sectional morphological analysis and area measurement of single fibers in blended products.
10．Adopts dynamic measurement mark automatic induction technology.
11．Fiber type user-defined technology allows users to customize fiber types.
12．Provides a fiber sample library with more than 50 fiber types.
Metrological Certification: Micrometer is equipped with test certificates provided by the National Institute of Metrology, China and the National Textile Metrology Station, China.
[Microscope Parameters]

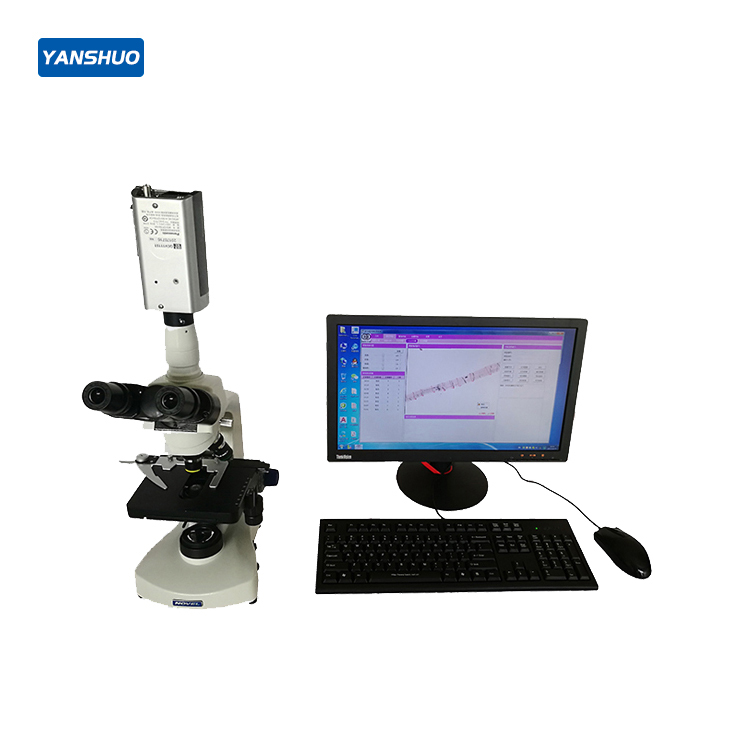

Microscope Model: MOTIC B1 (Objectives: 4X, 10X, 20X)Camera Model: Panasonic CP750
1．High-definition image quality: 700 TV lines.
2．High-sensitivity day/night conversion function: 0.08Lux (color mode); 0.008Lux (black and white mode).
3．Electronic sensitivity enhancement: Automatic (up to 32x); Manual (up to 512x).
4．Electronic shutter speed: 1/50s to 1/120000s.
5．Fog penetration compensation: Clear images can be obtained in hazy weather.
Configuration: Lenovo (Yangtian) Computer, Printer
