Pilling Tester_Yanshuo Instrument and Equipment Co.

Pilling Tester

Model Number: YG511-4
Origin: Chinese manufacturer
Minimum Order Quantity: 1 unit
Payment Terms: T/T, L/C
Delivery time: 20 working days
Delivery: Delivered directly to your door

What is a pilling tester?

The Pilling Tester, or ICI Pilling Tester, Pilling Box, is a test of the pilling of fabrics, especially wool knits, under stress-free conditions. The sample mounted on a polyurethane tube rolled randomly at a constant rotational speed in a cork-lined wooden case. After a specified number of tumbling, pilling and pilling performance is evaluated with a visual description.

Featured Products of Pilling Tester

Yanshuo has developed a variety of models of pilling testers. Each pilling box is equipped with a corresponding number of pilling boxes according to customer needs. You can always find the right product for your lab to test the pilling properties of a wide range of materials.

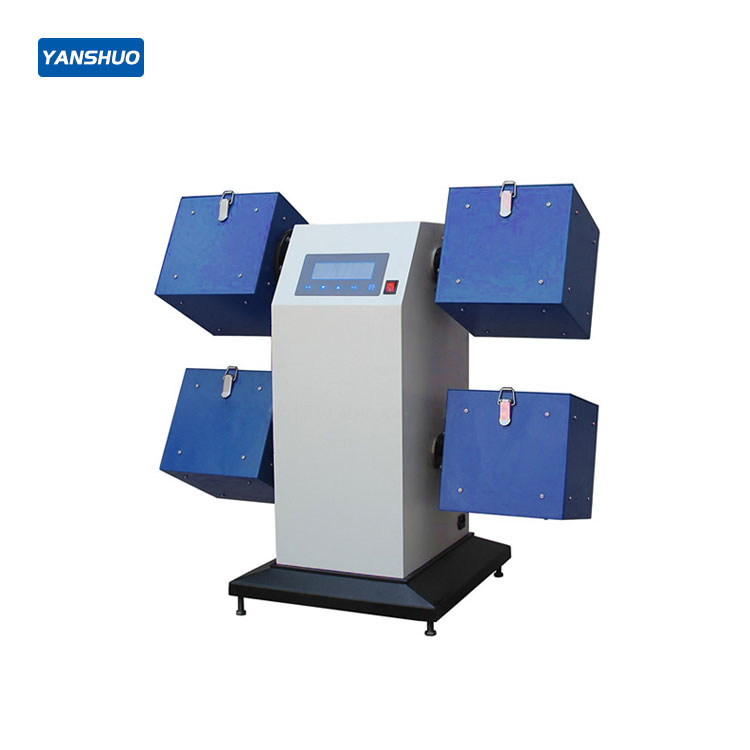

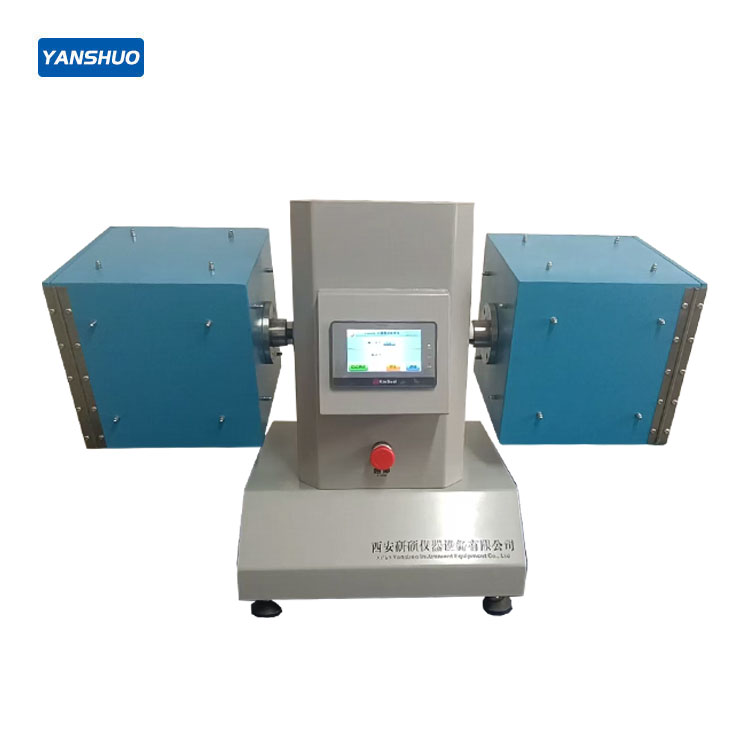

YG511 series Rolling box type pilling instrument

【 Instrument Features】

1. Imported polyurethane sample carrier tubes, imported rubber cork.

2. The inner rubber cork adopts a detachable design, which is convenient for self-replacement.

3. Contactless photoelectric counting and LCD display.

【 Technical Parameters】

Model :-II type -IV type -VI type

2. Number of pilling boxes: -2, -4, 6

3. Box dimensions: 235×235×235mm

4. Box speed: 60±2r/min

5. Counting range :1 to 99,999 times

6. Sample tube shape :Φ31.5× 140mm, 4 tubes per box

7. Power supply: Ac 220V± 10% 50Hz120W

8. Dimensions: (mm) 1200×500×500 1200×500×800 1200×500×1100

9. Weight: (Kg) 40 60 100

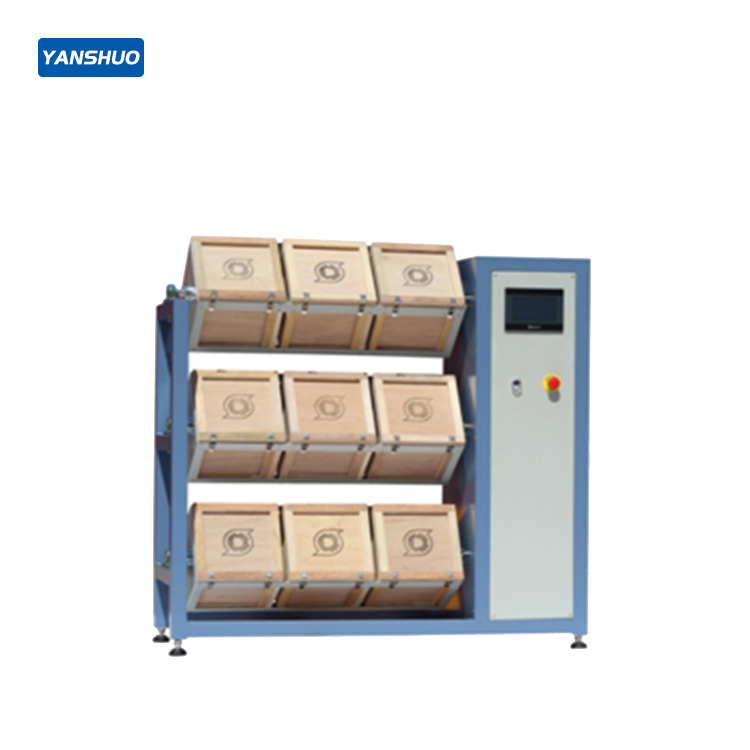

YG511-9 Box-type Pilling Tester

Scope of Application

It is used for the pilling test of wool knitted fabrics and other fabrics under non-pressure conditions. It adopts imported cork and detachable aluminum alloy cork backing plates, making cork replacement more convenient.

Method Standards

GB/T4802.3; ISO12945-1; IWS TM152; BS5811; JIS L1076

Technical Parameters

1.Number of pilling chambers: 9 units

2.Chamber rotation speed: 60 r/min (revolutions per minute)

3.Internal chamber dimensions: 235×235×235 mm

4.Test revolutions: 1~99999 (displayed on LED)

5.Overall dimensions: 1250mm×800mm×1780mm (L×W×H)

6.Power supply: AC220V, 120W

Why choose Yenshuo's pilling tester?

Yanshuo has 11 years of experience in the industry, which means our customers can rely on the reliability of our products. Long-term experience has endowed us with deep knowledge, which is reflected in the innovation and quality of our products. We have built strong relationships with over 1000+ customers, making your feedback and needs an important part of our strengths. We are also very good at solving any problems you may have. These are the key reasons to choose us as a high-quality tester.
