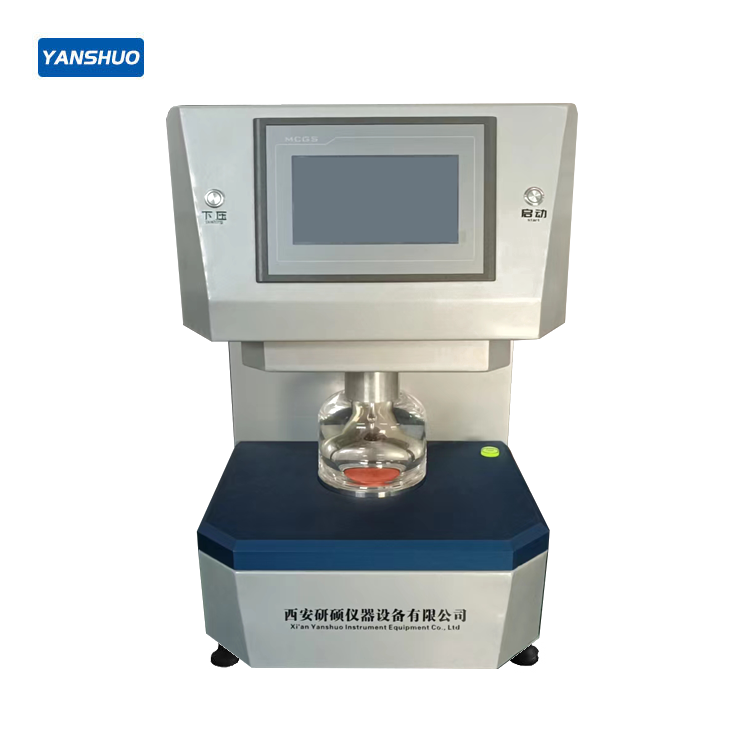

【Instrument Features】
1．Adopts the hydraulic method, complying with the new national standard.
2．Touch screen control with a concise and easy-to-understand interface, simple and intuitive operation, and sensitive touch response.
3．Pneumatic clamping ensures uniform clamping force. The fixture pressure is adjustable to avoid sample slipping or damage, enabling convenient use.
4．The test cover is made of high-transparent organic glass with built-in LED lighting, allowing clear observation of the sample test process.
5．Automatic induction bursting system, sensitive and reliable.
6．External safety protective glass cover prevents hand injury, ensuring safer use.
7．Equipped with an AC servo drive system, featuring low operating noise, wide speed regulation range, and high operating precision.
8．Uses a 16-bit A/D converter, with strong anti-interference performance, high sampling frequency, and high test accuracy.
9．The instrument supports four test modes: constant speed bursting, constant pressure, constant expansion, and constant time.
10．Equipped with a panel printer for direct report printing, and supports online work with professional computer software.
【Technical Parameters】
1．Measuring Range: 1%～100% of full scale
Model | Type -2 | Type -10 |
Measuring range | 2.00Mpa | 10.00Mpa |
Minimum graduation value | 0.001Mpa | 0.003Mpa
|
2.Elastic Diaphragm Thickness: ≤2mm
3.Sample Size: 7.3 cm² (Φ30.5mm); 50 cm² (Φ79.8mm) (standard configuration); 10 cm² (Φ35.7mm); 100 cm² (Φ112.8mm) (optional)
4.Maximum Expansion: 75±0.02mm
5.Pressurization Rate: 20-600ml/min
6.Test Modes: Constant speed bursting, constant pressure, constant expansion, constant time (four modes available)
7.Test Units: kpa, kgf/cm², atm, mmHg, lb/in² (free conversion)
8.Output Form: Print output, supports online communication
9.Power Supply: AC220V±10%
10.Power: 200W
11.Overall Dimensions: 550×450×700mm
12.Net Weight: 125Kg
