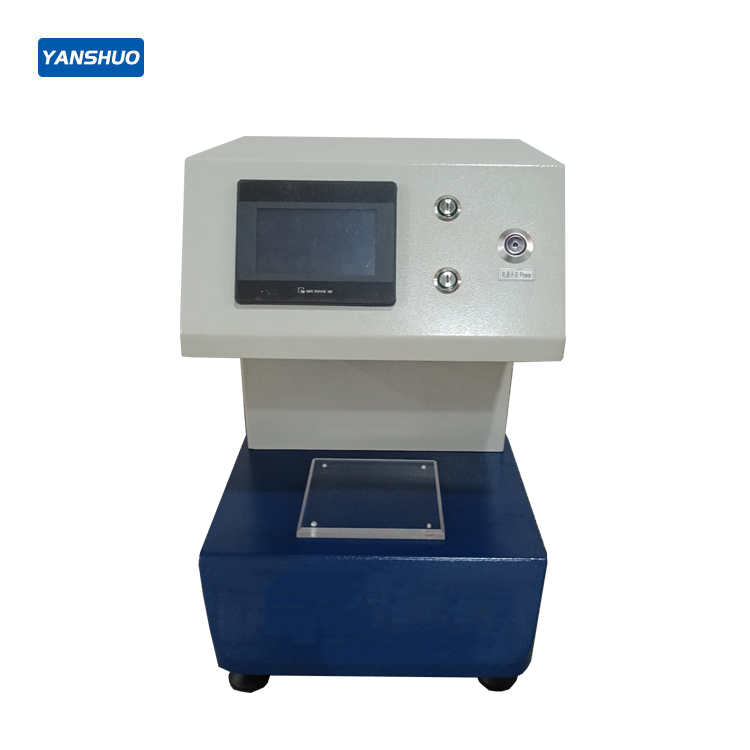

Home > Product > Non-woven Fabrics, Medical& Health Materials Testing Instruments > Non-woven Fabric TestingYS255 liquid repermeability tester
产品型号
发布时间
2026-03-18企业性质
浏览次数
相关产品
RELATED PRODUCTS详细介绍
【Scope of application】
A test method used to determine the resistance of diaper covering materials to the skin by seeping fluid.
【Relevant Standards】
GB/T 24218.14 Textiles - Test methods for nonwovens - Part 14: Determination of moisture resistance in covering materials, ISO 9073-14 Textiles - Test methods for nonwovens - Part 14: Moisture resistance of surface materials, WSP 80.10 - ERT 151.3 (02), WSP 70.8 - ERT 154.0 (02), ISO reference 9073-14:2002.
【Scope of application】:
A test method used to determine the resistance of diaper covering materials to the skin by seeping fluid.
[Meet the standard]:
GB/T 24218.14 Textiles - Test methods for nonwovens - Part 14: Determination of moisture resistance of coating materials,
ISO 9073-14 Textiles - Test methods for nonwoven fabrics - Part 14: Moisture resistance of surface materials,
WSP 80.10 - ERT 151.3(02)、
WSP 70.8 - ERT 154.0 (02)、
ISO reference 9073-14:2002。
[Instrument features]:
1. Touch screen control, Chinese and English menus, easy to operate.
2. Built-in thermal printer, convenient for quick printing of test results on site.
3. High-precision sensor, the test result is accurate to 0.001g.
4. Pneumatic components, lift the specimen when placing the simulated baby load to automatically complete the test.
5. Stepper motor and drive control to ensure that the speed meets the standard requirements.
6. The instrument has its own calibration function.
【Technical Parameters】:
1. Simulated baby load weight and size: 4000g±20g (10×10cm)
2. Test range and accuracy: 300g/0.001g
3. Test speed: 5cm/(5±1)s
4. Placement and residence time can be set: 1~999s
5. Pallet size: 170mm×170mm
6. Overall dimensions: 430×410×540mm
7. Weight: 51kg
8. Power supply: AC220V 50Hz 100W
