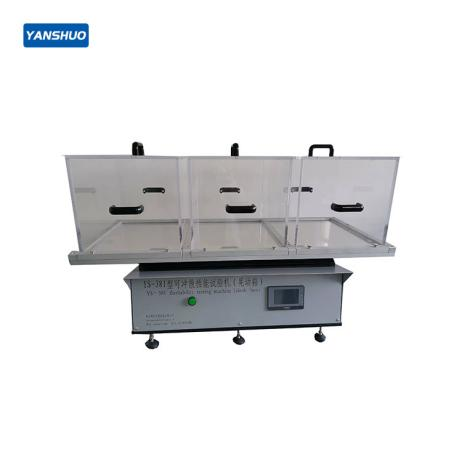

Home > Product > Non-woven Fabrics, Medical& Health Materials Testing Instruments > Non-woven Fabric TestingYS-381 Flushable Performance Tester (Shaking Box)
产品型号
发布时间
2026-03-18企业性质
浏览次数
相关产品
RELATED PRODUCTS详细介绍
【Scope of application】
It is suitable for disposable sanitary nonwovens that can be dispersed and degraded directly into the toilet, including wet toilet paper (toilet dry/wet wipes), feminine hygiene dry/wet wipes and infant hygiene care dry/wet wipes, etc.
【Relevant Standards】
FG502. R1(18) slosh box disintegration testIWSFG 2018 PAS3SL slosh box disintegrationGB/T 40181 Disposable sanitary nonwoven materials washability test method and evaluation method.
【Scope of application】:
It is suitable for disposable sanitary nonwovens that can be dispersed and degraded directly into the toilet, including wet toilet paper (toilet dry/wet wipes), feminine hygiene dry/wet wipes and infant hygiene care dry/wet wipes, etc.
[Meet the standard]:
FG502. R1(18) slosh Box Disintegration Test
IWSFG 2018 PAS3SL Slosh Box Disintegration
GB/T 40181 Test method and evaluation method for disposable nonwoven materials for sanitation
[Instrument features]:
1. The power adopts SITI motor and reducer imported from Italy;
2. Equipped with Mitsubishi PLC, touch screen display;
3. Built-in Mitsubishi Electric frequency converter.
4. Modular design of touch screen, which can be set according to standards, and can also be personalized input to support R&D and research;
5. Sliding disassembly and assembly test chamber, easy to pour out the test object.
【Technical Parameters】:
1. Time setting range: 1-999 minutes
2. Speed regulation range: 5-50 rpm;
3. Shaking box: 3pcs;
4. Maximum liquid capacity of shaking box: 3L
5. Power source: AC220V/50Hz;
6. Power: 1000W;
7. Overall dimensions: 110×600×600mm;
8. Weight: 123Kg.
9. Mesh screen: 200MM diameter Aperture: 12.5MM stainless steel material
