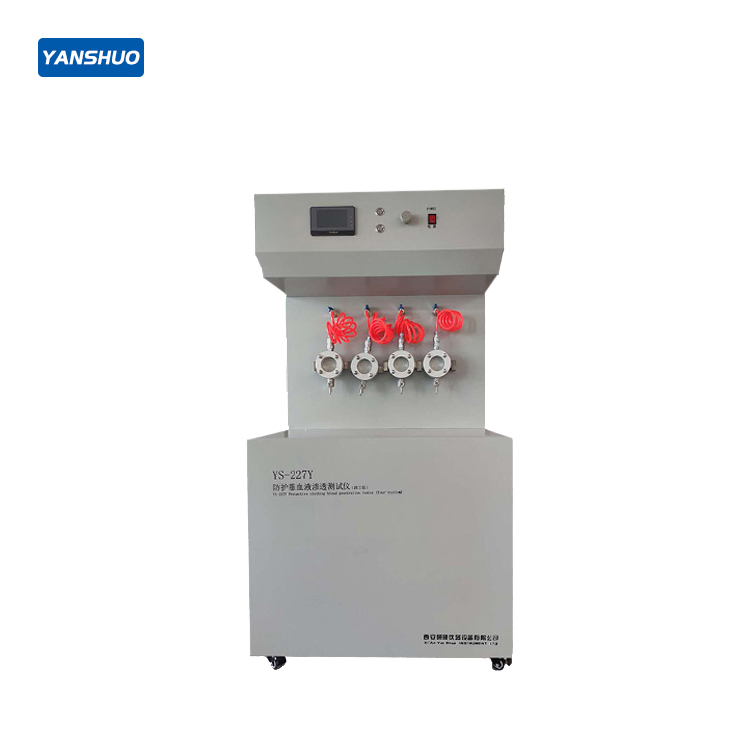

YS-227Y Medical Protective Clothing Synthetic Blood Penetration Tester (Four Stations)

**YS-227Y Medical Protective Clothing Synthetic Blood Penetration Tester (Four Stations)**

**【Scope of Application】**

Used for high-pressure penetration testing of products by applying controlled high-pressure output.

**【Applicable Standards】**

- GB 19083-2010 Technical requirements for medical protective masks

- YY 0469-2011 Medical surgical masks

- YY/T 0691-2008 Protective equipment against infectious pathogens — Test method for resistance to synthetic blood penetration of medical face masks (fixed volume, horizontally projected)

- ISO 22509:2004; F1862/F1862M-2013

- ASTM F1671 Standard test method for resistance of protective clothing materials to blood-borne pathogen penetration using Phi-X174 bacteriophage penetration as a test system

- ASTM F1670 Standard test method for resistance of protective clothing materials to synthetic blood penetration

- ASTM F903 Standard test method for resistance of protective clothing materials to liquid penetration

- ISO 16603:2004 Protective clothing against contact with blood and body fluids — Determination of the resistance of protective clothing materials to penetration by blood and body fluids — Test method using synthetic blood

- ISO 16604:2004 Protective clothing against contact with blood and body fluids — Determination of resistance of protective clothing materials to penetration by blood-borne pathogens — Test method using Phi-X174 bacteriophage

- YY/T 0699-2008 Liquid chemical protective equipment — Test method for resistance of protective clothing materials to penetration by liquids under pressure

- YY/T 0689-2008 Equipment for protection against blood and body fluids — Test method for resistance of protective clothing materials to penetration by blood-borne pathogens — Phi-X174 bacteriophage test method

- YY/T 0700-2008 Equipment for protection against blood and body fluids — Test method for resistance of protective clothing materials to penetration by blood and body fluids — Synthetic blood test method

- GB/T 19082-2009 Technical requirements for disposable medical protective clothing

**【Instrument Features】**

1.  Equipped with a silent air pump.

2.  Equipped with a positive pressure sensor for real-time pressure monitoring.

3.  Features a precision pressure regulating valve with stepless pressure adjustment, allowing for setting technical parameters such as dwell pressure and dwell time.

4.  Adjustable spray time with automated operation for convenience and efficiency.

5.  Equipped with a mask holding fixture for easy sampling and testing.

**【Technical Parameters】**

1.  Blood Volume: 2 mL / 60 mL test

2.  Control Mode: Manual control / Push-button control

3.  Pressure: Adjustable pressure up to 16 kPa / 2 psi for high-pressure output, accuracy 0.1 kPa

4.  Test Pressure Range: 0–16 kPa (2 psi)

5.  Micropressure Gauge Range: 0–0.1 kPa

6.  Pressure Resolution: 0.1 kPa

7.  Time Accuracy: 0.1 s

8.  Test Medium: Synthetic blood (provided by customer)

9.  Control Method: Manual / Push-button

10. Blood Volume: 2 mL / 60 mL

**【Test Procedure】**

Fix the specimen onto the instrument's sample clamp. At a distance of 30.5 cm from the center of the specimen, use a needle tube with an inner diameter of 0.84 mm to spray 2 mL / 60 mL of synthetic blood (surface tension 0.042 ± 0.002 N/m) horizontally onto the target area of the specimen under a pressure of 16 kPa / 2 psi. Remove the specimen and visually inspect it within 10 s / 60 s.
