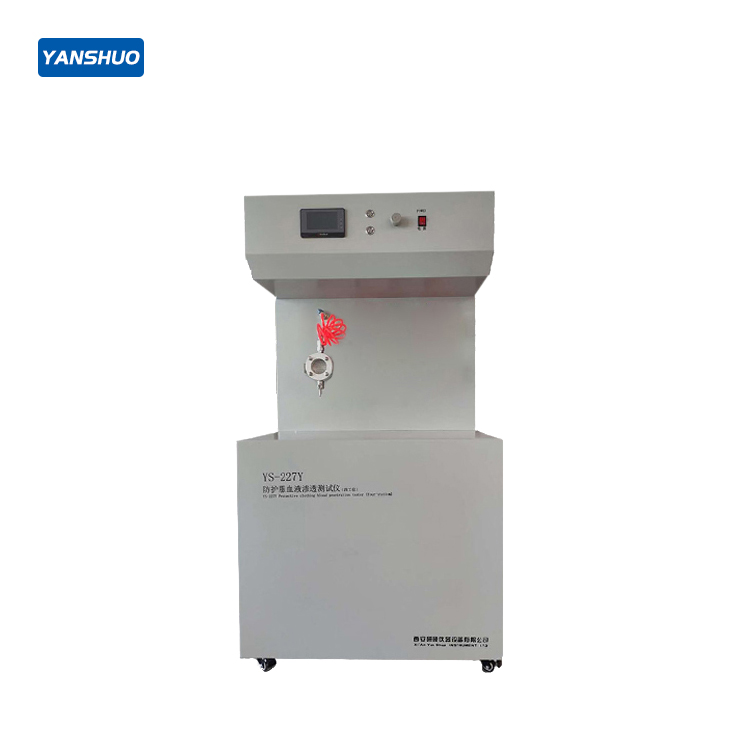

YS-227Y Medical Protective Clothing Synthetic Blood Penetration Tester (Single Station)
【Scope of Application】
Used for high-pressure penetration testing of products by applying controlled high-pressure output.
【Applicable Standards】
GB 4744-84
GB/T 19082-2009 Technical requirements for disposable medical protective clothing, etc.
ASTM F1670 Standard test method for resistance of protective clothing materials to synthetic blood penetration
ASTM F903 Standard test method for resistance of protective clothing materials to liquid penetration
ASTM F1671 Standard test method for resistance of protective clothing materials to blood-borne pathogen penetration using Phi-X174 bacteriophage penetration as a test system
ISO 811
ISO 16603:2004 Protective clothing against contact with blood and body fluids — Determination of the resistance of protective clothing materials to penetration by blood and body fluids — Test method using synthetic blood
ISO 16604:2004 Protective clothing against contact with blood and body fluids — Determination of resistance of protective clothing materials to penetration by blood-borne pathogens — Test method using Phi-X174 bacteriophage
YY/T 0699-2008 Liquid chemical protective equipment — Test method for resistance of protective clothing materials to penetration by liquids under pressure
YY/T 0700-2008 Equipment for protection against blood and body fluids — Test method for resistance of protective clothing materials to penetration by blood and body fluids — Synthetic blood test method
YY/T 0689-2008 Equipment for protection against blood and body fluids — Test method for resistance of protective clothing materials to penetration by blood-borne pathogens — Phi-X174 bacteriophage test method
【Instrument Features】
Equipped with a silent air pump.
Equipped with a positive pressure sensor for real-time pressure monitoring.
Features a precision pressure regulating valve with stepless pressure adjustment, allowing for setting technical parameters such as dwell pressure and dwell time.
Adjustable spray time with automated operation for convenience and efficiency.
Equipped with a mask holding fixture for easy sampling and testing.
【Technical Parameters】:
1. Display and control: color touch screen display and operation, parallel metal button operation;
2. Air source: 0.35~0.8MP;30L/min;
3. Pressure adjustment range: 1~30±0.1kPa;
4. Specimen size: 75mm×75mm;
5. Test area: 28.26 square centimeters;
6. Time control range and accuracy: 1~999.9 ±≤1 second;
7. Clamping force: 13.5N.m;
8. Metal blocking net: 50% ≥ open space; Bend ≤5mm at 30kPa;
9. Data output: automatic storage or printing;
10. Power supply: AC220V, 50Hz, 100W;
11. Dimensions (L×W×H): 400mm×400mm×500mm;
12. Weight: about 20Kg
