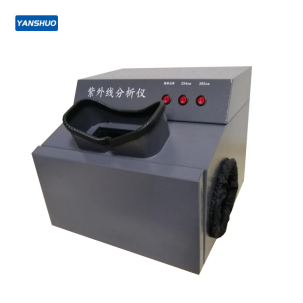

Home > Product > Non-woven Fabrics, Medical& Health Materials Testing Instruments > Non-woven Fabric TestingYS-121A camera obscura UV analyzer
产品型号
发布时间
2026-03-18企业性质
浏览次数
相关产品
RELATED PRODUCTS详细介绍
【Scope of application】
The UV lamp of the UV analyzer is composed of quartz glass UV lamp and filter, and the wavelengths of the two groups of light sources are 254nm and 365nm respectively. The light source can be used for experiments by filtering the color, and the two light sources can be used alone or mixed together.
【Relevant Standards】
Not at the moment.
【Scope of application】：
The UV lamp of the UV analyzer is composed of quartz glass UV lamp and filter, and the wavelengths of the two groups of light sources are 254nm and 365nm respectively. The light source can be used for experiments by filtering the color, and the two light sources can be used alone or mixed together.
【Instrument Usage】:
1. In scientific experiments, it is an instrument for detecting many major substances such as proteins and nucleotides.
2. In drug production and research, it can be used to check the quality of various fluorescent drugs such as hormones, biomass, alkalis, and vitamins, and it is especially suitable for thin layer analysis, paper layer analysis of spots and detection;
3. In the chemical industry such as dye, coating, rubber, petroleum, etc., determine various fluorescent materials, fluorescent indicators and additives to identify different types of crude oil and rubber products;
4. It can be used to measure different kinds of raw materials such as wool, silk man-made fiber, cotton, synthetic fiber in textile chemical fiber, and can check the quality of finished products;
5. It can be used to check the quality of toxins (such as aflatoxin, etc.), food additives, spoiled vegetables, fruits, chocolate, fat, honey, sugar, eggs, etc. in grain and oil, vegetables, and food departments;
6. It can also be used for the identification of certificates by the public security department.
[Instrument structure]:
This instrument is composed of a set of ultraviolet lamps with wavelengths of 254nm and 365nm respectively and a color filter. For chromatography plate sampling, positioning and lighting, there is also an ordinary fluorescent lamp in the seat. The whole machine has a simple structure, light weight, strong parts versatility, and convenient use and maintenance.
【Technical Parameters】:
1. Wavelength: 254nm, 365nm
2. UV color filter: 150×50mm
3. Overall dimensions: 300×300×270mm
4. Maximum irradiation area: 250×250mm (usable area)
5. Power supply: AC220V±10% 50HZ
6. Weight: 6Kg
