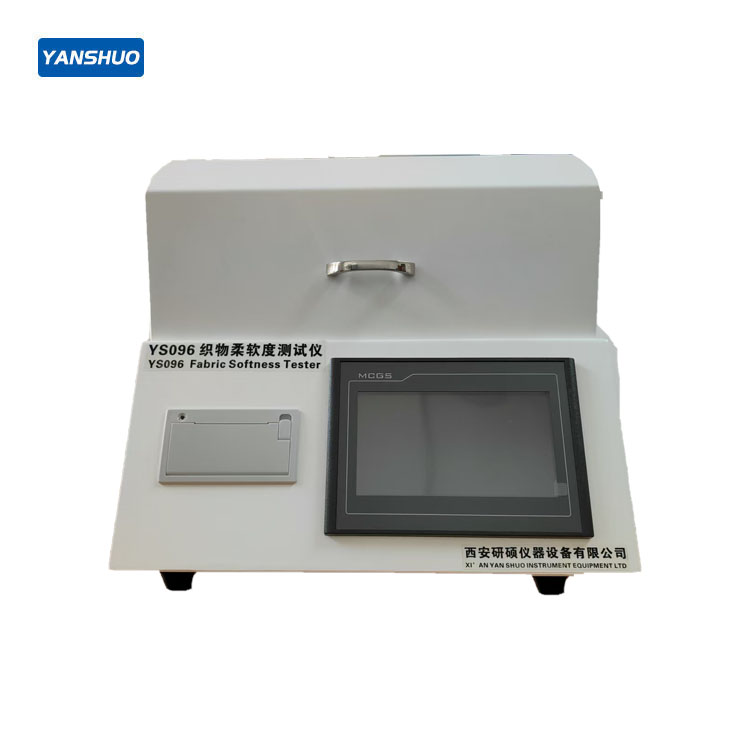

Home > Product > Non-woven Fabrics, Medical& Health Materials Testing Instruments > Non-woven Fabric TestingYS096 computerized softness tester
产品型号
发布时间
2026-03-18企业性质
浏览次数
相关产品
RELATED PRODUCTS详细介绍
【Scope of application】
Computerized softness tester is a testing instrument that simulates the softness of the hand, mainly used to test the softness performance of textiles, non-woven fabrics, non-woven fabrics, paper and other materials.
【Relevant Standards】
GB/T8942, QB/T1060, etc
【Scope of application】:
Computerized softness tester is a testing instrument that simulates the softness of the hand, mainly used to test the softness performance of textiles, non-woven fabrics, non-woven fabrics, paper and other materials.
[Meet the standard]:
GB/T8942, QB/T1060, etc
[Instrument features]:
1. Adopt microcomputer controlled digital circuit technology, touch screen operation interface, easy to operate;
2. One-click test function, up to 50 times of measurement data can be remembered;
3. It has automatic processing function for measurement data, and can be operated online with PC and data saving function.
【Technical Parameters】:
1. Measurement range: (10~1000) mN;
2. Test speed: 1.2mm/s;
3. Measurement time: 15s;
4. Resolution: 1mN;
5. Accuracy: ±1%;
6. Probe press-in depth: 8 +0.5 mm;
7. Narrow width of the specimen table: 5mm, 6.35mm, 10mm, 20mm;
8. Parallelism error on both sides of the slit of the specimen table: ≤0.05mm;
9. Power source: AC 220V;
10. Power: 200W;
11. Overall dimensions: 570×415×200mm;
12. Net weight: 35kg
