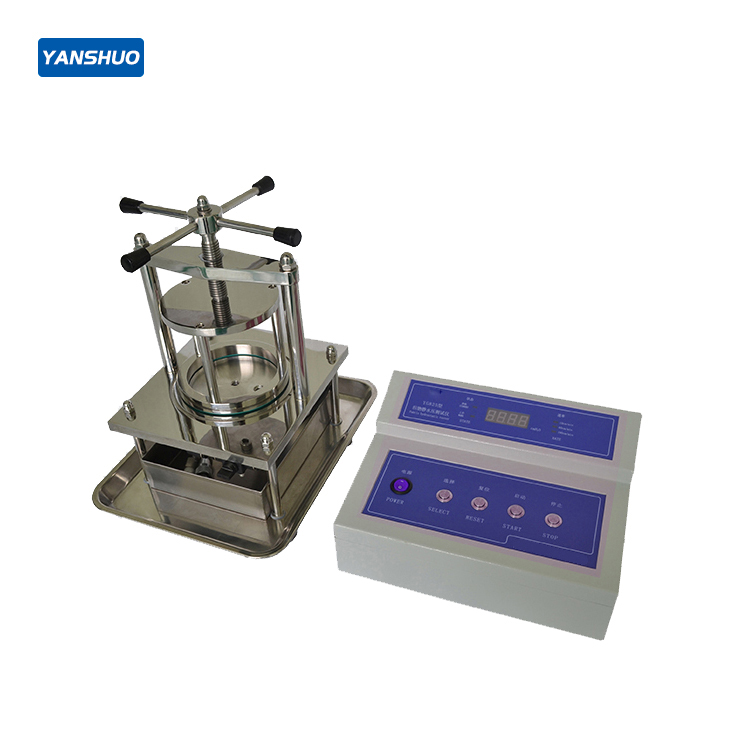

Home > Product > Non-woven Fabrics, Medical& Health Materials Testing Instruments > Non-woven Fabric TestingYG825 non-woven hydrostatic pressure tester (5/10/20M)
产品型号
发布时间
2026-03-18企业性质
浏览次数
相关产品
RELATED PRODUCTS详细介绍
【Scope of application】
It is used to test the water pressure resistance of coated fabrics, nonwovens, composite fabrics, films, and other materials.
【Relevant Standards】
GB/T4744、FZ/T01004、ISO811、AATCC127、JISL1092等
【Scope of application】:
It is used to test the water pressure resistance of coated fabrics, nonwovens, composite fabrics, films, and other materials.
[Meet the standard]:
GB/T4744、FZ/T01004、ISO811、AATCC127、JISL1092等
[Instrument features]:
1. Imported main control chip control, high-brightness LED display;
2. The cloth sample clamping device is all made of high-quality 304 stainless steel;
3. Select high-precision pressure sensor, accurate and stable measurement results;
4. The instrument is simple to operate and the test data is intuitive.
【Technical Parameters】:
1. Range range: 0-500cmH2O; 0-1000cmH2O； 0-2000cmH2O； 0-3000cmH2O (optional);
2. Clamping area: 100cm2;
3. Rise rate: 10cm/min; 60cm/min； 100cm/min；
(0-2000cmH2O increase rate 200; 300；400cm/min)
4. Power source: AC220V±10%;
5. Power: 30W;
6. Dimensions:
280x360x400mm stainless steel test device;
300x230x160mm electrical control box;
7. Net weight: 22kg.
