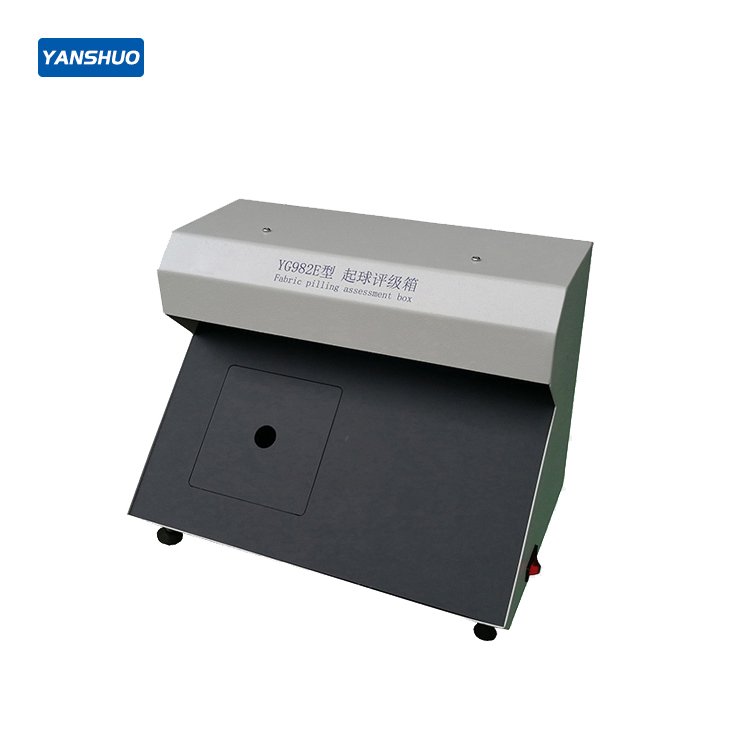

Home > Product > Non-woven Fabrics, Medical& Health Materials Testing Instruments > Non-woven Fabric TestingYG982E type universal graded sight lens
产品型号
发布时间
2026-03-18企业性质
浏览次数
相关产品
RELATED PRODUCTS详细介绍
【Scope of application】
It is used for the standard rating of all Martindale pilling, ICI pilling, ICI hook filing, scrambled pilling, circular trajectory method pilling and other test specimens, and the specimen is compared with the standard drawing card under the formulated light source to obtain the rating results.
【Relevant Standards】
BS5811、ISO 12945、ASTM D3512、ASTM D4970、ASTM D5362、IWSTM 152 etc.
【Scope of application】:
It is used for the standard rating of all Martindale pilling, ICI pilling, ICI hook filing, scrambled pilling, circular trajectory method pilling and other test specimens, and the specimen is compared with the standard drawing card under the formulated light source to obtain the rating results.
[Meet the standard]:
BS5811、ISO 12945、ASTM D3512、ASTM D4970、ASTM D5362、IWSTM 152等
【Technical Parameters】:
1. Observation area: 340×165×240 mm;
2. Light source: CWF lamp;
3. Power source: AC220V, 50HZ;
4. Power: 20W;
5. Overall dimensions: 340×280×240mm;
6. Net weight: 3kg.
