【Scope of application】
It is used to test the water impermeability test of various materials such as coated fabrics, nonwovens, composite fabrics, films, etc.
【Relevant Standards】
GB/T4744、FZ/T01004、ISO811、AATCC127、JISL1092 etc,

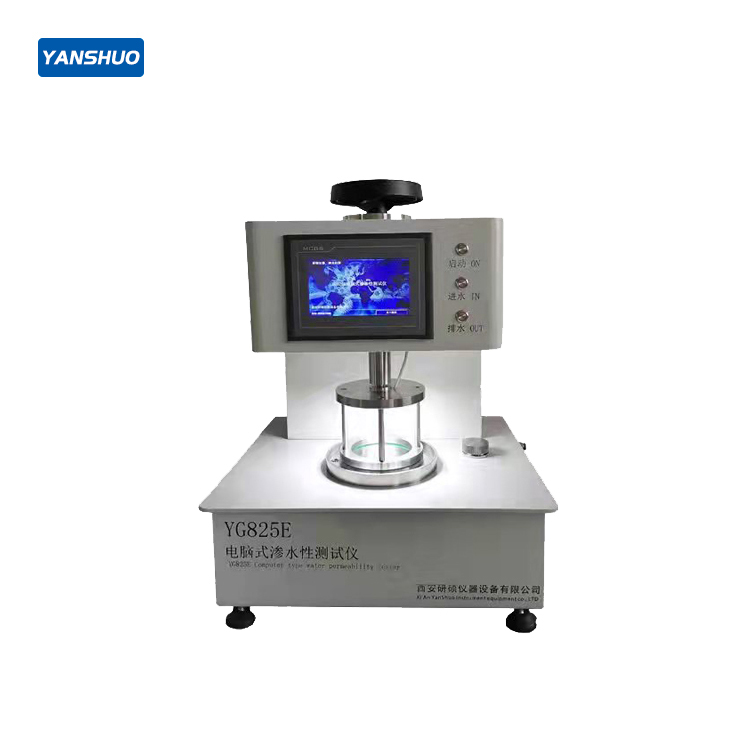

YG825E Hydrostatic Pressure Tester
**【Scope of Application】:**
Used for testing the water penetration resistance of various materials such as coated fabrics, non-wovens, composite fabrics, and films.
**【Compliance Standards】:**
GB/T4744, FZ/T01004, ISO811, AATCC127, JIS L1092, etc.
**【Instrument Features】:**
1. Equipped with a color LCD touch screen display, available in Chinese and English menus, offering simple and intuitive operation.
2. One-key water filling and draining function, high-brightness LED illumination for added convenience during testing.
3. Built-in four test modes to fully meet various testing standards.
4. Built-in multiple unit options, eliminating the need for result conversion.
5. High-precision pressure sensor ensures accurate, stable, and reproducible test results.
6. Built-in water tank with water shortage protection function.
**【Technical Parameters】:**
1. **Measuring Range:**
| Model number | ~5 | ~10 | ~20 | ~30 |
| Ranger | 0~50kpa | 0~100kpa | 0~200kpa | 0~300kpa |
| Accuracy | ±0.2% | ±0.5% | ±0.5% | ±1% v |
2. **Sample Clamp Area:** 100 cm²
3. **Test Units:** Pa, KPa, mmH₂O, cmH₂O, mbar
4. **Water Pressure Rise Rate:** 0.1 Kpa – 30 Kpa/min
5. **Water Tank Capacity:** 2500 ml
6. **Power Supply:** AC220V, 50Hz
7. **Power Consumption:** 200W
8. **Overall Dimensions:** 580 × 400 × 700 mm
9. **Net Weight:** 75 kg
