【Scope of application】

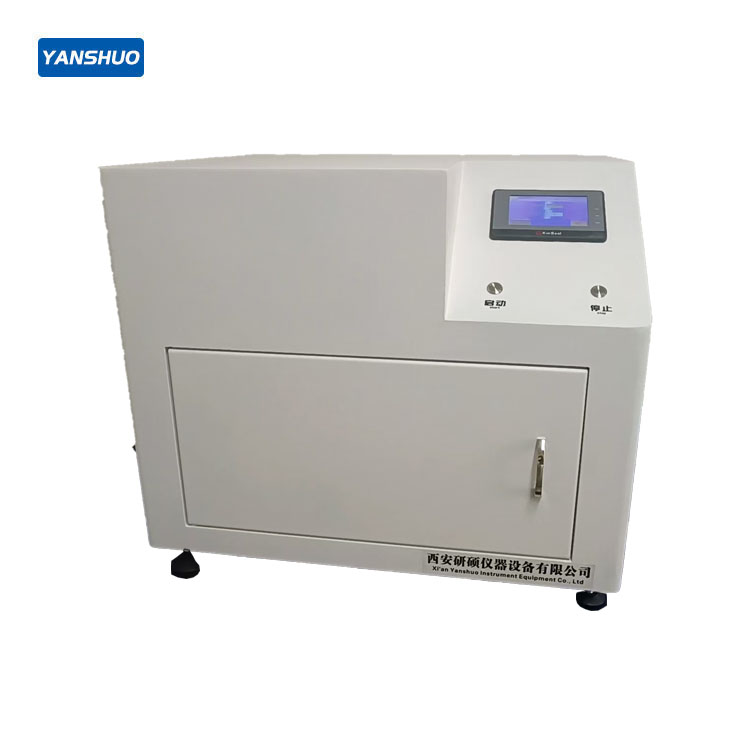

The powder loss rate tester is suitable for the detection of how much powder is lost in toilet paper, toilet paper base paper, ordinary paper and other products. It is widely used in toilet paper manufacturers, quality inspection systems, third-party testing institutions, colleges and universities, scientific research institutes and other units.
【Relevant Standards】
GBT 20810-2018 Toilet paper (including toilet paper base)
【Scope of application】:
The powder loss rate tester is suitable for the detection of how much powder is lost in toilet paper, toilet paper base paper, ordinary paper and other products. It is widely used in toilet paper manufacturers, quality inspection systems, third-party testing institutions, colleges and universities, scientific research institutes and other units.
[Meet the standard]:
GBT 20810-2018 Toilet paper (including toilet paper base)
【Product Features】:
1. Intelligent embedded operating system, professional humanized interface design, what you see is what you get;
2. The test system independently developed according to the standard has strong adaptability and high reliability;
3.5-inch color LCD screen, high-definition interface display effect;
4. Test and stop are equipped with high-quality metal buttons, which is more convenient and fast to use;
5. High-precision stepper motor drives operation, silent and smooth;
6. Contains a unique crank slider movement system, which perfectly meets the standard requirements;
7. Microcomputer control, large LCD display experimental process counting, operation is clear and clear;
8. Standard configuration of micro printer, print experimental data at any time;
9. High-precision timing chip, so that the time process control is more accurate;
10. Standard RS232 data communication interface, convenient for data export and external connection;
【Technical Parameters】:
1. Test frequency: (180±5) times/min (number of swings);
2. Swing distance: (100±5)mm
3. Overall dimensions: 600mm(L)×420mm(D)×590mm(H)
4. Power supply: 220VAC, 50Hz
5. Net weight: 36kg
| 220VAC，50Hz |
| 220VAC，50Hz |
