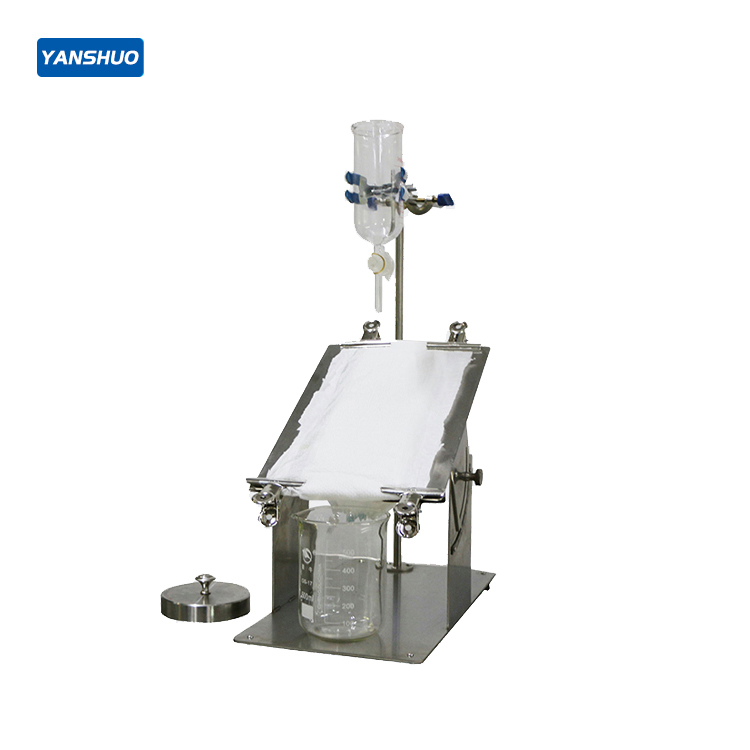

Home > Product > Non-woven Fabrics, Medical& Health Materials Testing Instruments > Non-woven Fabric TestingYG824 non-woven liquid permeability tester
产品型号
发布时间
2026-03-18企业性质
浏览次数
相关产品
RELATED PRODUCTS详细介绍
【Scope of application】
It is used for the determination of the amount of slippage, reflow and leakage of various diapers and diapers/pads for infants and adults.
【Relevant Standards】
GB/T28004, QB/T2493, GB/T8939, etc.
【Scope of application】:
It is used for the determination of the amount of slippage, reflow and leakage of various diapers and diapers/pads for infants and adults.
[Meet the standard]:
GB/T28004, QB/T2493, GB/T8939, etc.
【Technical Parameters】:
1. Weight accuracy: 0.01g;
2. Standard Drain Funnel:
Standard draining funnel for baby products: 80ml;
Standard draining funnel for adult products: 150ml;
3. Standard briquette: ¢100mm, mass (1.2±0.002) kg (capable of producing 1.5kPa pressure);
4. Time accuracy: 0.01s;
5. Overall dimensions: 450×230×550mm;
6. Net weight: 6kg.
[Instrument features]:
1. Full 304 stainless steel material, rust-proof and durable;
2. High-pressure one-time punching into chassis;
3. The angle of the specimen is adjustable.
