【Scope of application】
【Relevant Standards】
GB/T4744、FZ/T01004、ISO811、AATCC127、JISL1092 etc.

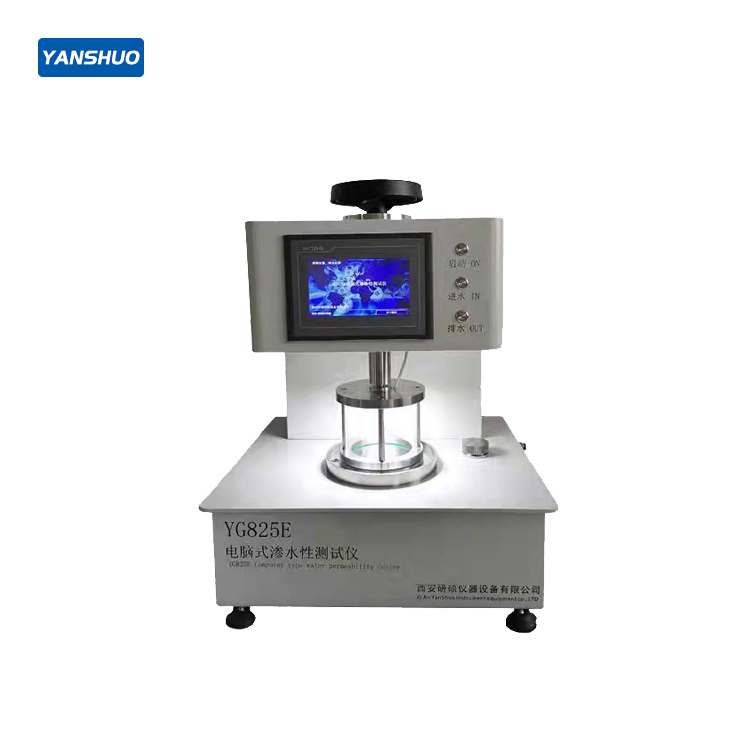

YG825E-Ⅱ Non-woven Fabric Water Penetration Resistance Tester
【Scope of Application】:
Used for testing the water penetration resistance of various materials such as coated fabrics, non-wovens, nonwoven fabrics, composite fabrics, and films.
【Compliance Standards】:
GB/T4744, FZ/T01004, ISO811, AATCC127, JIS L1092, etc.
【Instrument Features】:
Equipped with a color LCD touch screen display, available in Chinese and English menus, offering simple and intuitive operation.
One-key water filling and draining function, high-brightness LED illumination for added convenience during testing.
Built-in eight test modes to fully meet various testing standards.
Built-in multiple unit options, eliminating the need for result conversion.
Built-in panel printer for direct test report printing.
High-precision pressure sensor ensures accurate, stable, and reproducible test results.
Built-in water tank with water shortage protection function.
【Technical Parameters】:
Measuring Range:
Sample Clamp Area: 100 cm²
Test Units: Pa, KPa, mmH₂O, cmH₂O, mbar
Water Pressure Rise Rate: 0.1 Kpa – 100 Kpa/min
Water Tank Capacity: 2500 ml
Power Supply: AC220V, 50Hz
Power Consumption: 200W
Overall Dimensions: 580 × 400 × 700 mm
Net Weight: 75 kg
