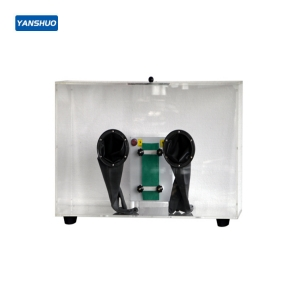

Home > Product > Non-woven Fabrics, Medical& Health Materials Testing Instruments > Non-woven Fabric TestingYG342S Protective Material Electrostatic Attenuation Performance Tester
产品型号
发布时间
2026-03-18企业性质
浏览次数
相关产品
RELATED PRODUCTS详细介绍
【Scope of application】
This instrument is suitable for determining the electrostatic attenuation properties of medical protective clothing and heat-sealable flexible anti-static barrier materials under specified laboratory environmental conditions, given the high-voltage electric field of the test material, and then the charge decay time is measured.
【Relevant Standards】
GB 19082-2009 Technical requirements for medical disposable protective clothing Chapter 5.10, GJB 2605-1996 Specification for heat-sealable flexible anti-static barrier materials Chapter 4.7.16
【Scope of application】:
This instrument is suitable for determining the electrostatic attenuation properties of medical protective clothing and heat-sealable flexible anti-static barrier materials under specified laboratory environmental conditions, given the high-voltage electric field of the test material, and then the charge decay time is measured.
[Applicable Standards]:
GB 19082-2009 Technical requirements for medical disposable protective clothing Chapter 5.10, GJB 2605-1996 Specification for heat-sealable flexible anti-static barrier materials Chapter 4.7.16
【Technical Parameters】:
1. Test voltage: 0V~5KV, 0V~—5KV
2. Attenuation voltage: 100V~4800V digital setting
3. Pressurization time: 1s~3000s digital setting
4. Attenuation time: real-time display, resolution 0.001s
5. Attenuation mode: attenuation ratio and attenuation voltage
6. Test voltage: test voltage and attenuation voltage are displayed in real time
7. Static voltage pressurization timing range: 1s~10S digital display
8. Static voltage attenuation timing range: 1s~10S digital display
9. Specimen attenuation ratio: 10%~99% digital setting
10. Number of specimens: 1~9 pieces
11. Number of tests: 1~9 times
12. Host weight: kg
13. Instrument power supply: AC 220V±10% 50Hz
14. Host dimensions: 835mm×430mm×560mm
[Instrument features]:
1. Because the instrument adopts computer test and control technology combined with high-tech index programs, the test is accurate and reliable, the operation is convenient and safe, and it can be equipped with a printer; The screen visually displays the specified voltage and decay time of the specimen.
Microcomputer control, intelligent testing, various indicators and parameters The interface is intuitive, clear at a glance, and simple to use.
2. In the specified environment, after clamping the specimen, click "Start" the fully automatic operation process of the instrument, and the operator does not need to perform too many operations to complete the test task.
