Non-woven Fabric Testing

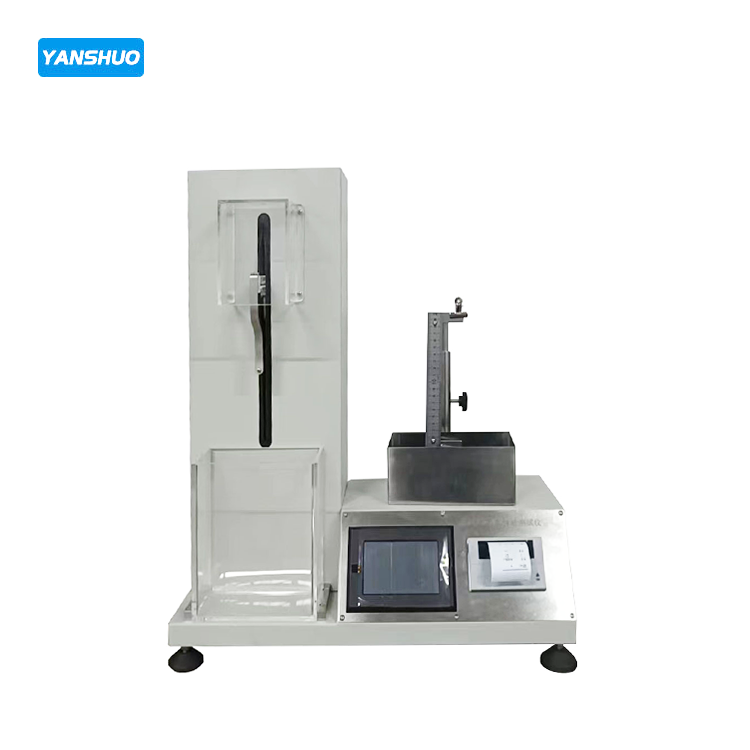

Home > Product > Non-woven Fabrics, Medical& Health Materials Testing Instruments > Non-woven Fabric TestingYG822 non-woven fabric water absorption performance tester
产品型号
发布时间
2026-03-18企业性质
浏览次数
相关产品
RELATED PRODUCTS详细介绍
【Scope of application】
It is used for the water absorption of various medical and hygienic nonwovens.
【Relevant Standards】
GB/T24218.6、ISO9073.6、ISO10.1、EDANA10.3 etc
【Scope of application】:
It is used for the water absorption of various medical and hygienic nonwovens.
[Meet the standard]:
GB/T24218.6、ISO9073.6、ISO10.1、EDANA10.3 etc.
【Technical Parameters】:
1. Test method: single test;
2. Force measurement system: Resistive strain force sensor is adopted;
3. Force measurement range: 0~1000g;
4. Force measurement accuracy: ≤±0.01%F· S；
5. Running speed: 1~40mm/s arbitrarily set;
6. Suction and dripping time: 0-999s arbitrarily set;
7. Output form: touch screen display output; Printout of Chinese and English reports;
8. Data processing volume: ≤ 1000 trials;
9. Printing machine: embedded thermal printer;
10. Power source: Ac220V±10% 50Hz;
11. Power: 80W;
12. Overall dimensions: 500×400×600mm;
13. Net weight: 25Kg.
[Instrument features]:
1. Touch screen control, Chinese and English menu interface, simple and fast operation;
2. Built-in printer, can print out the output results directly.
