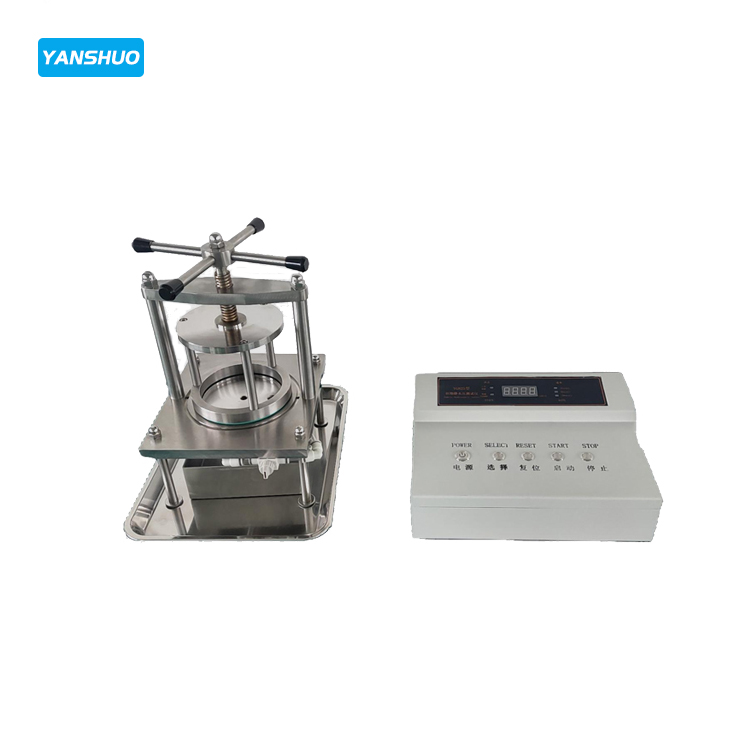

YG825 Hydrostatic Pressure Tester (5M/10M/20M)

**YG825 Hydrostatic Pressure Tester (5M/10M/20M)**

**【Scope of Application】**

Used for the determination of hydrostatic pressure resistance in fabrics, as well as for evaluating the hydrostatic pressure resistance of coated materials. According to different working requirements, models with 5‑meter, 10‑meter, and 20‑meter measuring ranges are available.

**【Applicable Standards】**

GB 4744-84, ISO 811

**【Instrument Features】**

1.  This instrument is microcomputer-controlled with a digital display.

2.  The sample clamping fixture is made entirely of high-quality stainless steel.

3.  Equipped with a high-precision pressure sensor and microcomputer control, ensuring accurate, stable, and reliable test results.

4.  The instrument is simple and convenient to operate.

**【Technical Parameters】**

1.  **Model:** YG825

2.  **Sample Clamp Area:** 100 cm²

3.  **Measuring Range (Optional):**

    *   0–5000 mm (5M)

    *   0–10000 mm (10M)

    *   0–20000 mm (20M)

    *   0–30000 mm (30M, optional)

4.  **Rising Speed:** 10 cm/min, 60 cm/min, 100 cm/min

5.  **Weight:** 20 kg

6.  **Power Supply:** AC220V

**【Hardware Configuration】**

1.  High-precision pressure sensor

2.  Branded electronic pump
